Rognan Stabling Facility
![Photo of Rognan Stabling Facility](/contentassets/6fd902ca0e7b4e5291459d7ea6efc3e6/rognan.jpg?width=1680&height=1120&quality=80)

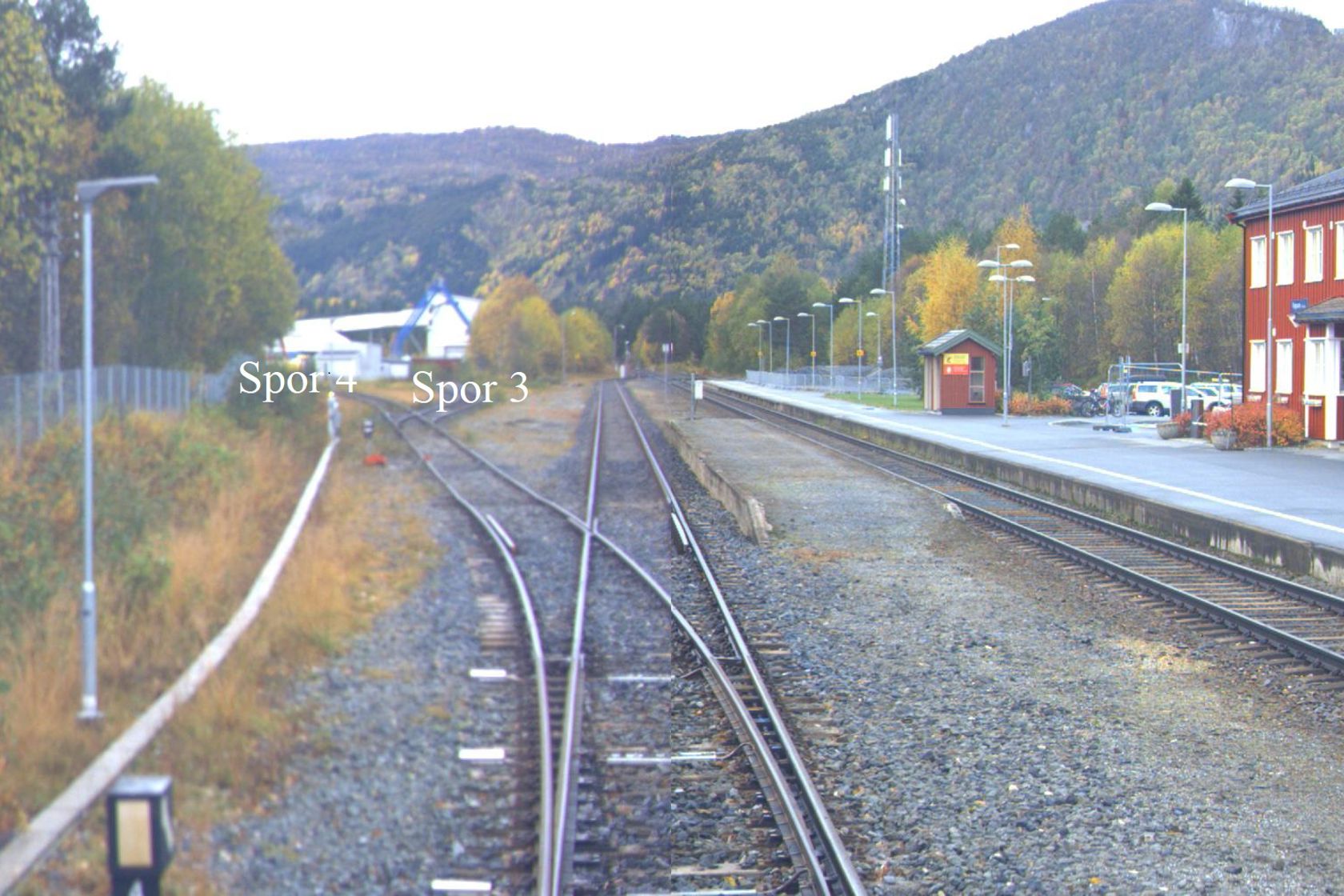

Rognan Stabling Facility Photo: Bane NOR.
On this page:
Location Location
Section: Trondheim S–Bodø, Nordlandsbanen.
Distance from Trondheim: 647,76 km.
Contact Information
Elise Sivertsen
Track Table
Track | Platform | Comments | ||||||
---|---|---|---|---|---|---|---|---|
No. | Type | Length (m) | Passing loop length (m) | Extended option (m) | Length (m) | Height (m) | Width (m) | |
1 | Hovedtogspor | 301 | ||||||
1 | Hovedtogspor | 174 | ||||||
1 | Hovedtogspor | 393 | 331 | 332/332 | 40 | 300 | 3,30 | Mellomplattform |
1 | Hovedtogspor | 393 | 331 | 332/332 | 270 | 300 | 6,50 | Sideplattform |
2 | Togspor | 393 | 331 | 40 | 300 | 3,30 | Mellomplattform | |
3 | Øvrige spor | 171 | Privat sidespor | |||||
4 | Øvrige spor | 216 | Privat sidespor | |||||
5 | Øvrige spor | 214 | For arbeidstog | |||||
6 | Øvrige spor | 191 | For arbeidstog |
Stabling Capacity
Get in touch with the contact person for Rognan Stabling Area.
Train Heating Installations
Installation | Location and Capacity | ||||||
---|---|---|---|---|---|---|---|
Installation no. | Capacity (kVA) | Stand no. | Local indentity no. | Serving track no. | Voltage (V) | Frequency (Hz) | Maximal continuous current (A) |
EL-TVA-000159 | 0 |

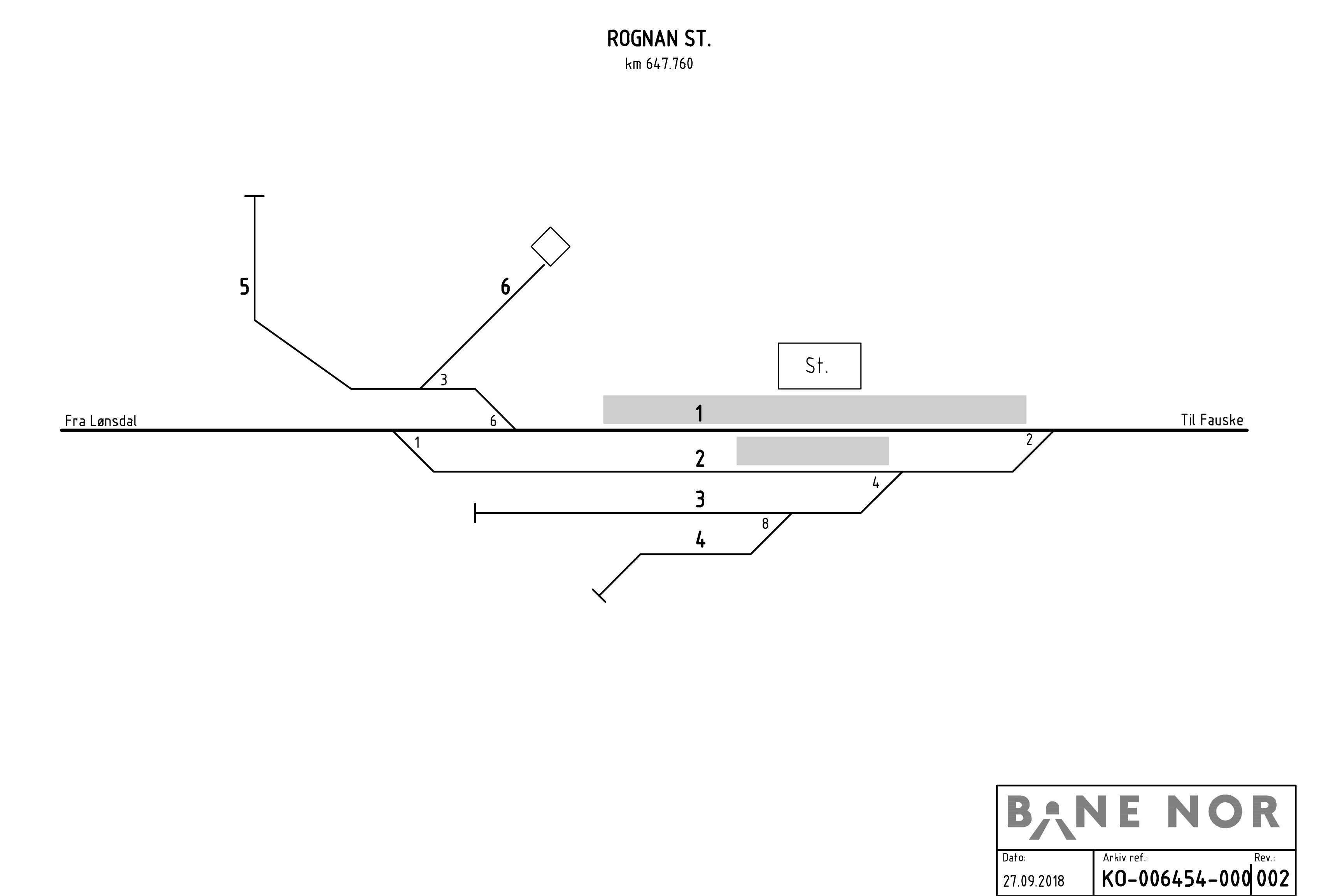

Track Plan
![Track plan Rognan Stabling Facility](/contentassets/5141c59c0f3749f0a3bb17b9cf00711e/rognan-hensetting.png?width=1680&quality=80)
Track plan for Rognan Stabling Facility. Bane NOR
