Notodden Stabling Facility
![Photo of Notodden Stabling Facility](/contentassets/5787108f10cb4f3eb35b60fc001bb695/notodden.jpg?width=1680&height=1120&quality=80)
Notodden Stabling Facility Photo: Jernbanedirektoratet
On this page:
Facility Location
Section: Notodden–Hjuksebø, Tinnosbanen.
Distance from Oslo: 145,72 km.
Contact Information
Elise Sivertsen
Track Table
Track | Platform | Comments | ||||||
---|---|---|---|---|---|---|---|---|
No. | Type | Length (m) | Passing loop length (m) | Extended option (m) | Length (m) | Height (m) | Width (m) | |
1 | Hovedtogspor | 458 | 346 | |||||
1 | Hovedtogspor | Fra hovedikj. A til spv. 1 | ||||||
2 | Togspor | 458 | 345 | 234 | 300 | 5 |
Mellomplattform Dekker spor 2 og 1 |
|
3 | Buttspor | 110 | 600 | 5 |
Sideplattform Til kollektivterminalen |
|||
4 | Øvrige spor | |||||||
5 | Øvrige spor | |||||||
14 | Øvrige spor | |||||||
15 | Øvrige spor | |||||||
16 | Øvrige spor | |||||||
3A | Øvrige spor | |||||||
12A | Øvrige spor |
Stabling Capacity
Track no. | Stabling length (m) | Number of stabling spots (110 m) | Catenary | Service platform | Track access with car | Toilet waste disposal | Water filling | Pre-heating installation | Washing facility | Notes on limitations and functions |
---|---|---|---|---|---|---|---|---|---|---|
1 | 346 | 3 | X | X | ||||||
2 | 345 | 3 | X | X | ||||||
3 | 110 | 1 | X | X | X | |||||
3A | 242 | 2 | X | |||||||
4 | 242 | 2 | X | |||||||
14 | 53 | X | X |

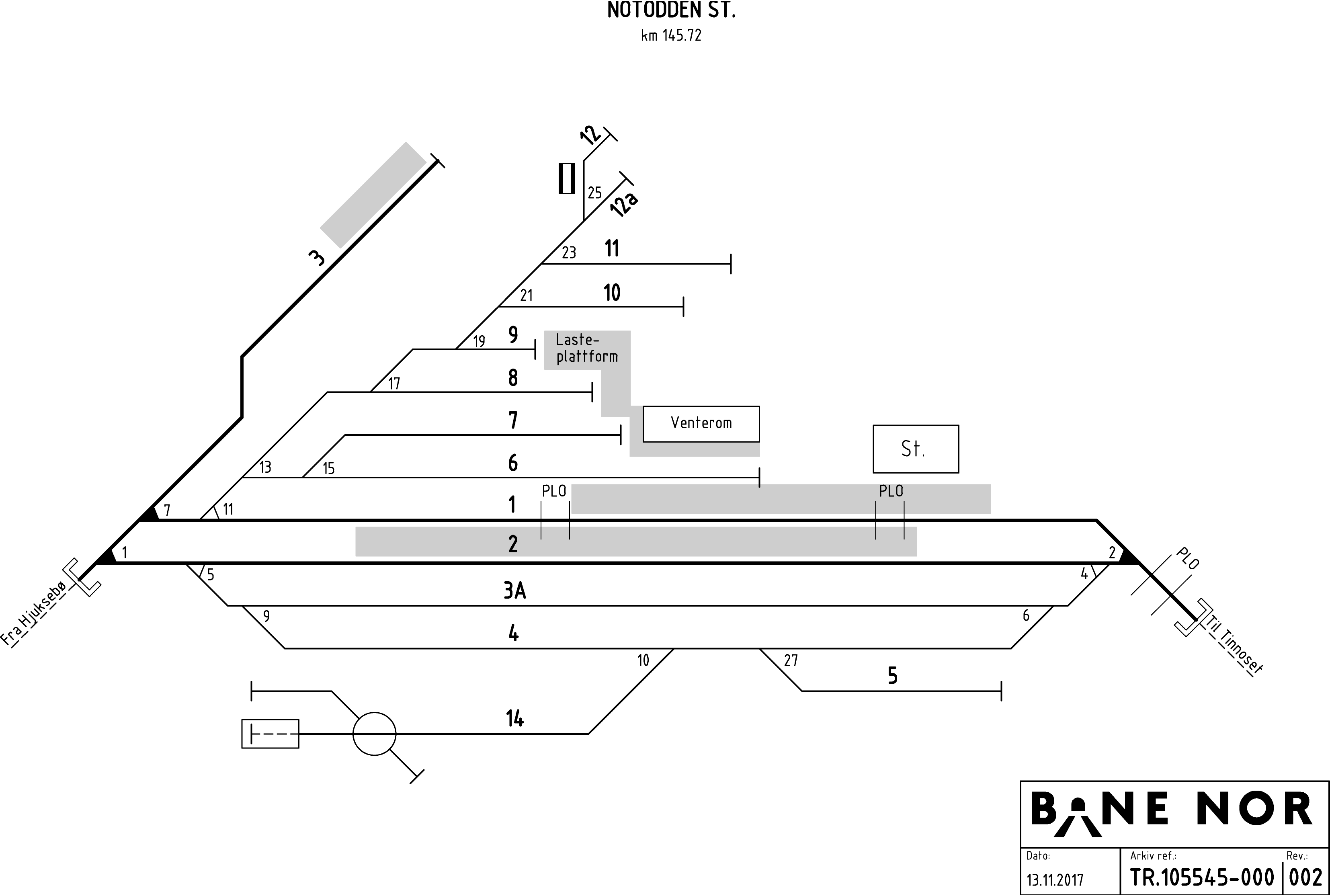

Track Plan
![Track plan Notodden Stabling Facility](/contentassets/58c78b13744b418b98651668af45b053/notodden-hensetting.png?width=1680&quality=80)
Track plan for Notodden Stabling Facility Bane NOR
