Mosjøen Stabling Facility
![Photo of Mosjøen Stabling Facility](/contentassets/adc1e784e49246dfba13735c7f26ce72/mosjoen.jpg?width=1680&height=1120&quality=80)

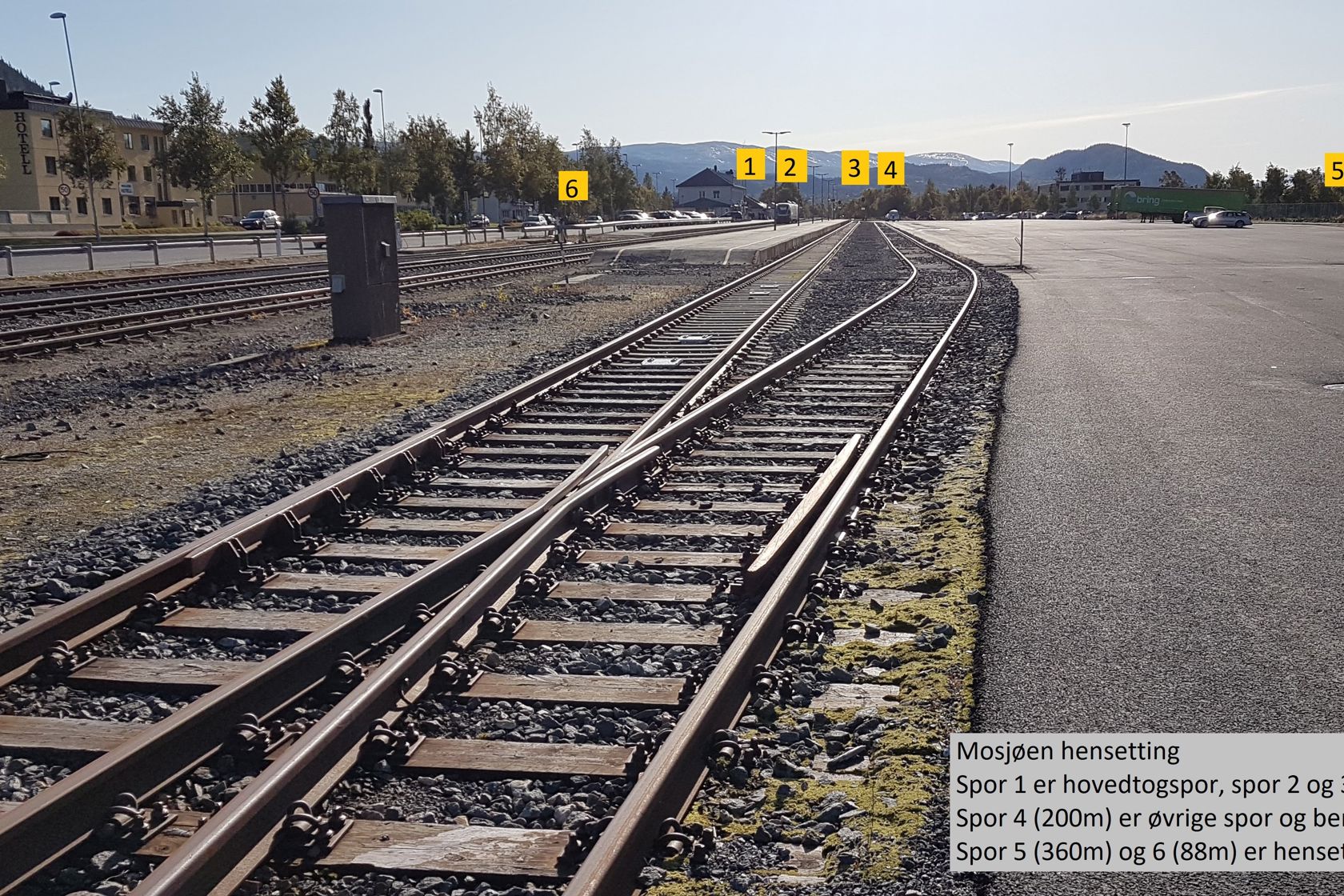

Mosjøen Stabling Facility Photo: Jernbanedirektoratet
On this page:
Facility Location
Section: Trondheim S–Bodø, Nordlandsbanen.
Distance from Trondheim: 406,01 km.
Contact Information
Elise Sivertsen
Track Table
Track | Platform | Comments | ||||||
---|---|---|---|---|---|---|---|---|
No. | Type | Length (m) | Passing loop length (m) | Extended option (m) | Length (m) | Height (m) | Width (m) | |
1 | Hovedtogspor | 570 | ||||||
1 | Hovedtogspor | 1545 | 714 | 215 | 350/320 | 4 |
Sideplattform Dekker spor 1 og 2 |
|
2 | Togspor | 779 | 714 | 250 | 350/320 | 6 |
Mellomplattform Dekker spor 2 og 3 |
|
3 | Togspor | 677 | 680 | |||||
4 | Øvrige spor | 320 | 207 | |||||
5 | Øvrige spor | 390 | 390 | |||||
6 | Buttspor | 90 | 88 | |||||
7 | Buttspor | 0 | ||||||
8 | Øvrige spor | 0 | ||||||
9 | Buttspor | 70 | 65 | |||||
10 | Buttspor | 70 | 65 | |||||
11 | Buttspor | 150 | 140 | |||||
12 | Øvrige spor | 110 | 90 | |||||
13 | Øvrige spor | 30 | 30 | |||||
14 | Øvrige spor | 35 | 35 | |||||
15 | Buttspor | 80 | 65 | |||||
16 | Buttspor | 250 | 250 | |||||
102 | Øvrige spor | 50 | 10 | |||||
103 | Øvrige spor | 45 | 20 | |||||
104 | Øvrige spor | 20 | 20 | |||||
105 | Øvrige spor | 20 | 20 | |||||
106 | Øvrige spor | 45 | 20 |
Stabling Capacity
Get in touch with the contact person for Mosjøen Stabling Area.
Train Heating Installations
Installation | Location and Capacity | ||||||
---|---|---|---|---|---|---|---|
Installation no. | Capacity (kVA) | Stand no. | Local indentity no. | Serving track no. | Voltage (V) | Frequency (Hz) | Maximal continuous current (A) |
EL-TVA-000025 | 44 | ||||||
EL-TVA-000026 | 500 | ||||||
EL-TVA-000095 | 44 | ||||||
EL-TVA-000154 | 500 |

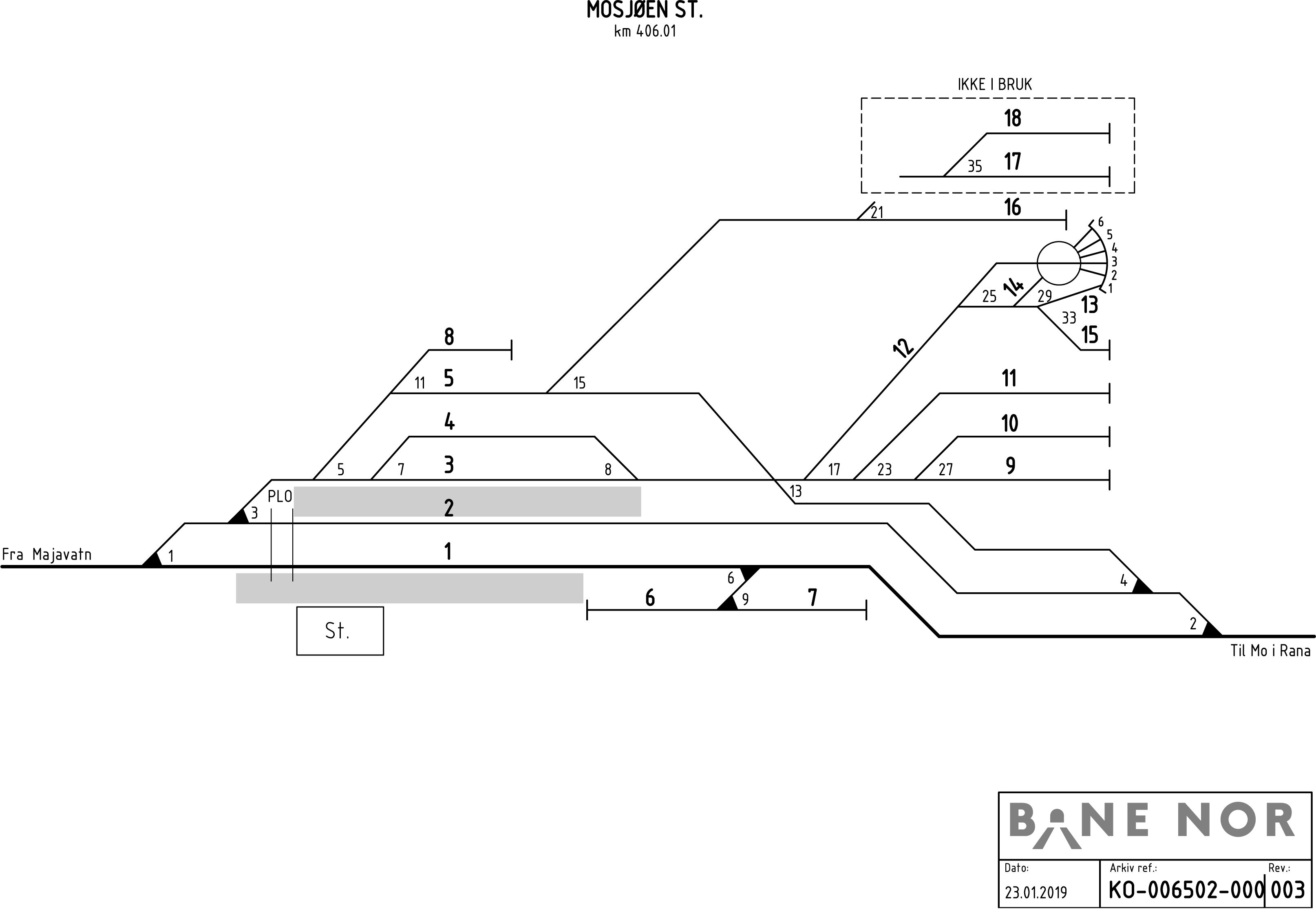

Track Plan
![Track plan Mosjøen Stabling Facility](/contentassets/98e908b2eb324dd992ab11e41417427d/mosjoen-hensetting.png?width=1680&quality=80)
Track plan for Mosjøen Stabling Facility. Bane NOR
