Lillehammer Stabling Facility
![Photo of Lillehammer Stabling Facility](/contentassets/a969b59ce09f413cb0950d038176b847/lillehammer.jpg?width=1680&height=1120&quality=80)

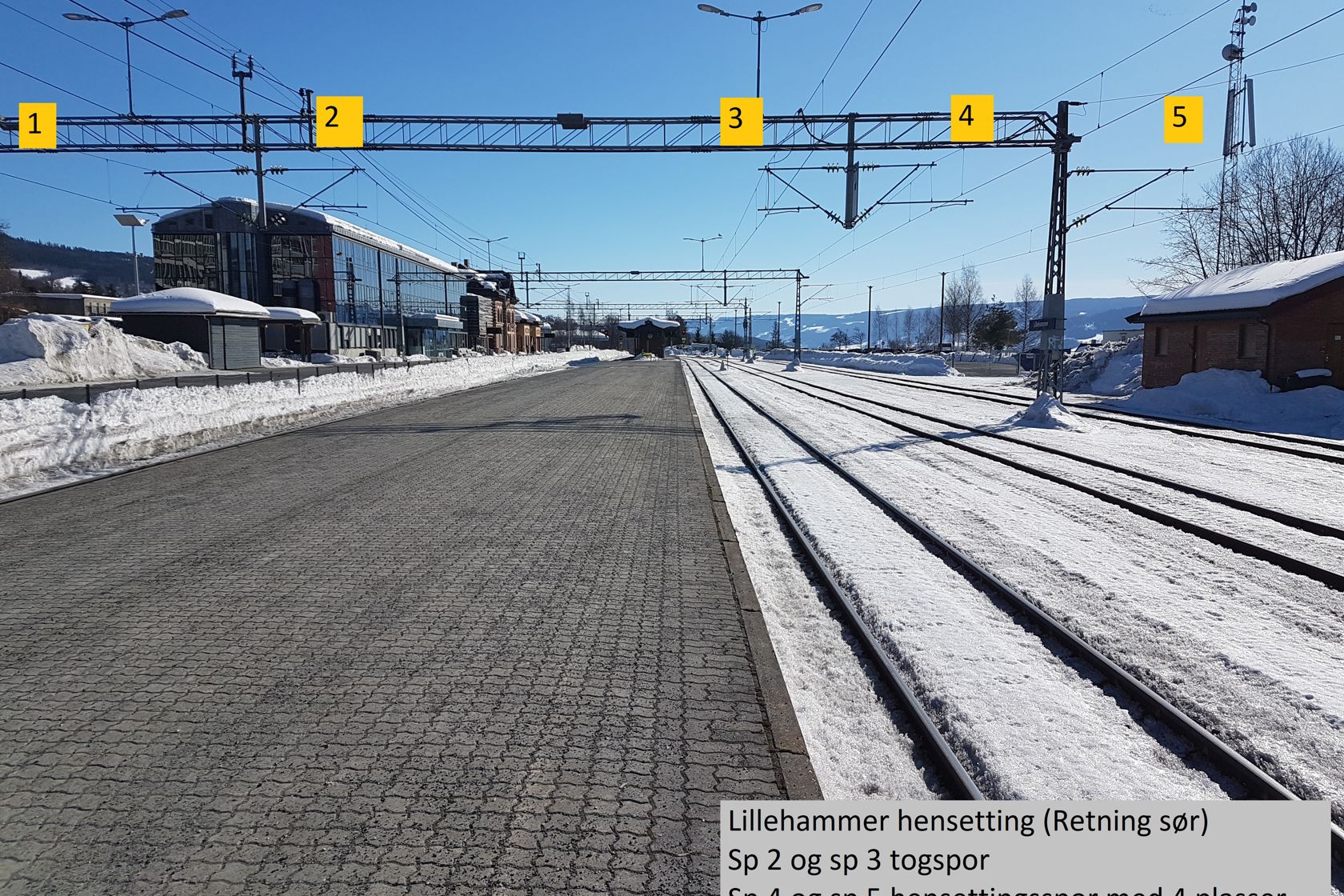

Lillehammer Stabling Facility Photo: Jernbanedirektoratet
On this page:
Facility Location
Section: Oslo S–Trondheim S, Dovrebanen.
Distance from Oslo: 184,18 km.
Contact Information
Elise Sivertsen
Track Table
Track | Platform | Comments | ||||||
---|---|---|---|---|---|---|---|---|
No. | Type | Length (m) | Passing loop length (m) | Extended option (m) | Length (m) | Height (m) | Width (m) | |
1 | Hovedtogspor | 1391 | 683 | 340 | 570 | 8,70 |
Sideplattform Kjedebrudd + 40 m ved km 184,3 |
|
2 | Togspor | 814 | 630 | 265 | 570 | 7,50 |
Mellomplattform Dekker spor 2 og 3 |
|
3 | Togspor | 411 | 283 | Spor 3 er avvikspor fra spor 2, og må kjøre del av spor 2 nordover for å komme til hovedspor. | ||||
4 | Øvrige spor | |||||||
5 | Øvrige spor | |||||||
6 | Øvrige spor | |||||||
7 | Øvrige spor | |||||||
8 | Øvrige spor |
Stabling Capacity
PGet in touch with the contact person for Lillehammer Stabling Facility.
Train Heating Installations
Installation | Location and Capacity | ||||||
---|---|---|---|---|---|---|---|
Installation no. | Capacity (kVA) | Stand no. | Local indentity no. | Serving track no. | Voltage (V) | Frequency (Hz) | Maximal continuous current (A) |
EL-TVA-000013 | 400 | ||||||
EL-TVA-000064 | 800 |
Track Plan
![Track plan Lillehammer Stabling Facility](/contentassets/f8aa213c94a44b86aaff8b2cc2deec35/lillehammer-hensetting.png?width=1680&quality=80)

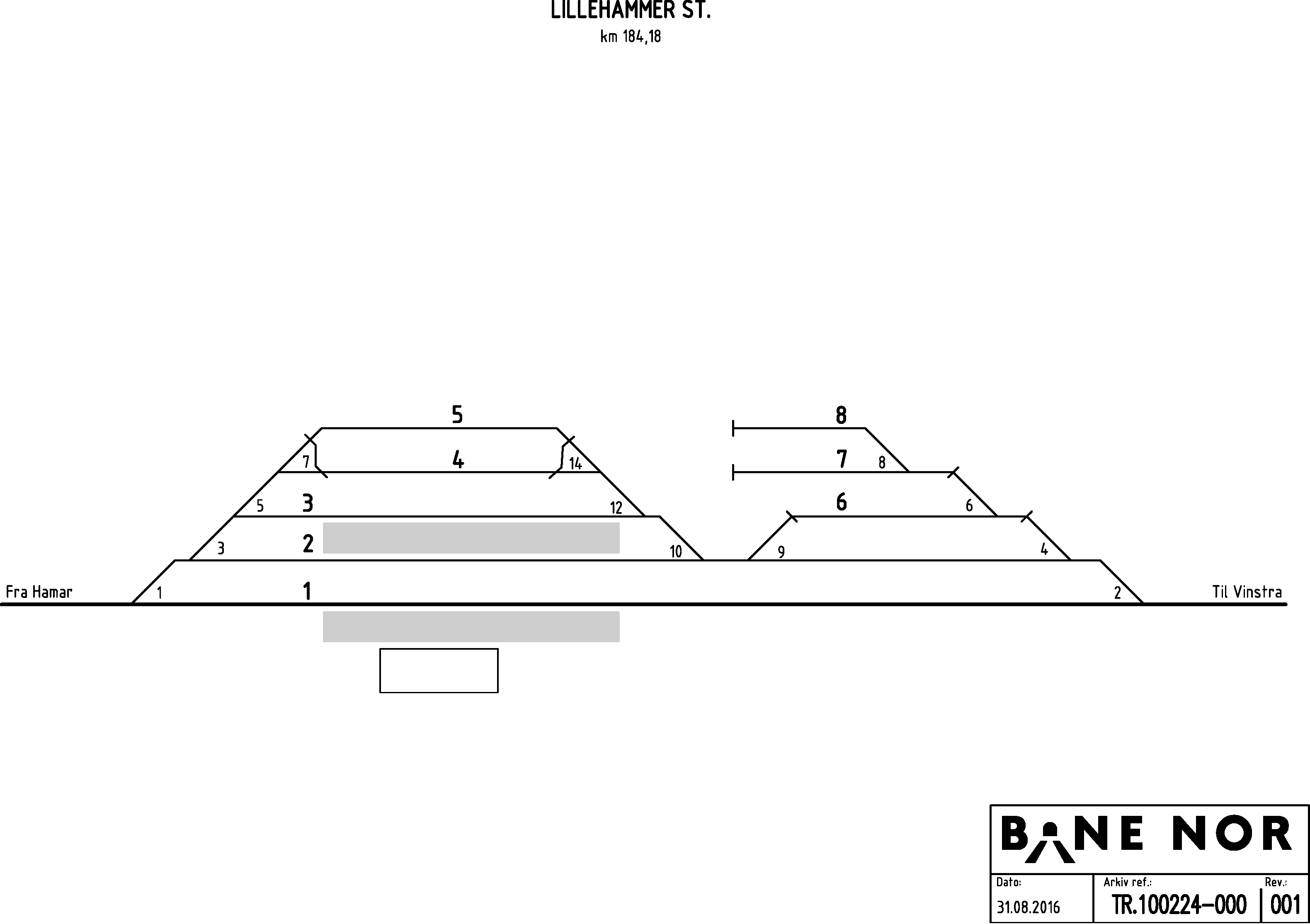

Track plan for Lillehammer Stabling Facility. Bane NOR
