Kongsvinger Stabling Facility

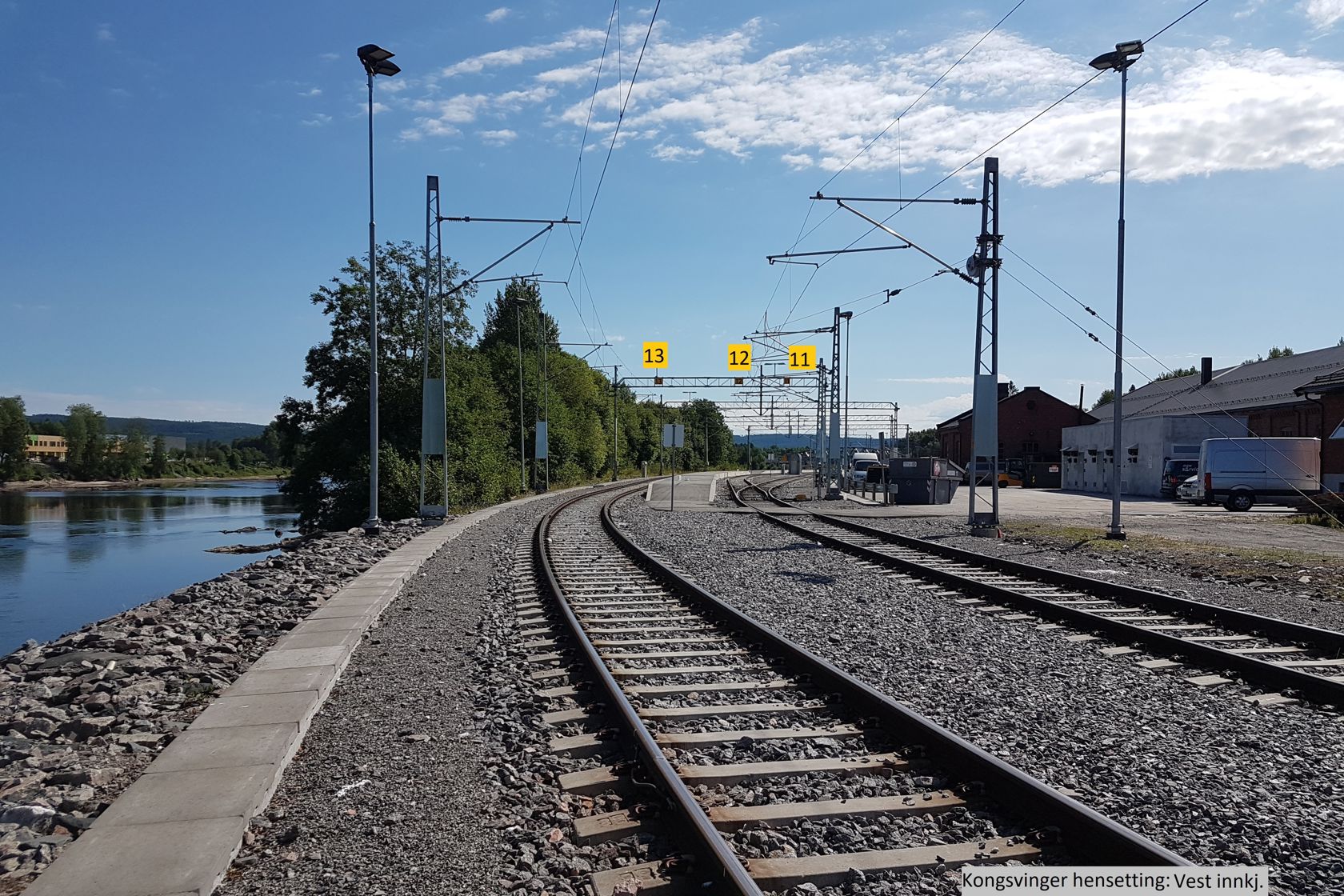

![Photo of Kongsvinger Stabling Facility](/contentassets/6de3af65e6424410b6002cb218648807/kongsvinger.jpg?width=1680&height=1120&quality=80)
Kongsvinger Stabling Facility Photo: Atle Einarson
On this page:
Facility Location
Section: Oslo S–Kongsvinger, Kongsvingerbanen.
Distance from Oslo: 100,28 km.
Contact Information
Elise Sivertsen
Track Table
Track | Platform | Comments | ||||||
---|---|---|---|---|---|---|---|---|
No. | Type | Length (m) | Passing loop length (m) | Extended option (m) | Length (m) | Height (m) | Width (m) | |
1 | Togspor | 1112,50 | 342 | 256 | 700 | 5,35 |
Sideplattform Personovergang |
|
1 | Øvrige spor | 626 | 626 | |||||
2 | Hovedtogspor | 2903 | 342 | 209,50 | 650 | 7 |
Mellomplattform Dekker spor 2 og 1 Personovergang |
|
3 | Buttspor | 878 | 104 | |||||
4 | Togspor | 1252,60 | 899 | |||||
5 | Togspor | 1791 | Skiftespor | |||||
6 | Øvrige spor | |||||||
7 | Togspor | 748 | Gjennom Lokstall | |||||
8 | Togspor | 252 | ||||||
9 | Togspor | 298,70 | Gjennom Lokstall | |||||
10 | Buttspor | 127 | Skiftespor | |||||
11 | Buttspor | 198,50 | ||||||
12 | Buttspor | 305,90 | ||||||
13 | Buttspor | 347,30 | ||||||
15 | Buttspor | 175 | ||||||
16 | Buttspor | 232 | Hensettingspor | |||||
18 | Buttspor | 255 | Norsenga Tømmerterminal | |||||
20 | Buttspor | 350 | Norsenga Tømmerterminal | |||||
21 | Buttspor | 408 | Norsenga Tømmerterminal | |||||
22 | Buttspor | 412 | Norsenga Tømmerterminal | |||||
24 | Buttspor | 0 | kongsvinger omformerst | |||||
25 | Øvrige spor | 0 | kongsvinger omformerst | |||||
400 | Togspor | Solørbanen |
Stabling Capacity
Spor | Hensettings- lengde (m) |
Antall 110 m hensettingsplasser |
KL-anlegg | Serviceplattform | Sportilgang med bil | Toalettømming til stasjonært anlegg | Vannfylling | Togvarmeanlegg | Merknader |
---|---|---|---|---|---|---|---|---|---|
3 | 107 | - | X | ||||||
11 | 134 | 1 | X | X | X | X | X | X | |
12 | 255 | 2 | X | X | X | X | X | X | |
13 | 343 | 3 | X | X | X | X | X | X | |
15 | 133 | 1 | |||||||
16 | 232 | 2 | X | ||||||
17 | 170 | X |
Train Heating Installations
Installation | Location and Capacity | ||||||
---|---|---|---|---|---|---|---|
Installation no. | Capacity (kVA) | Stand no. | Local indentity no. | Serving track no. | Voltage (V) | Frequency (Hz) | Maximal continuous current (A) |
EL-TVA-000096 | 2500 |
Track Plan
![Track plan Kongsvinger Stabling Facility](/contentassets/250e3fb028d94af2ade1959d974353af/kongsvinger-hensetting.png?width=1680&quality=80)
Track plan for Kongsvinger Stabling Facility. Bane NOR
