Flåm Stabling Facility
![Photo of Flåm Stabling Facility](/contentassets/30413db87f8f491abf1598fdf22cc688/flam.jpg?width=1680&height=1120&quality=80)

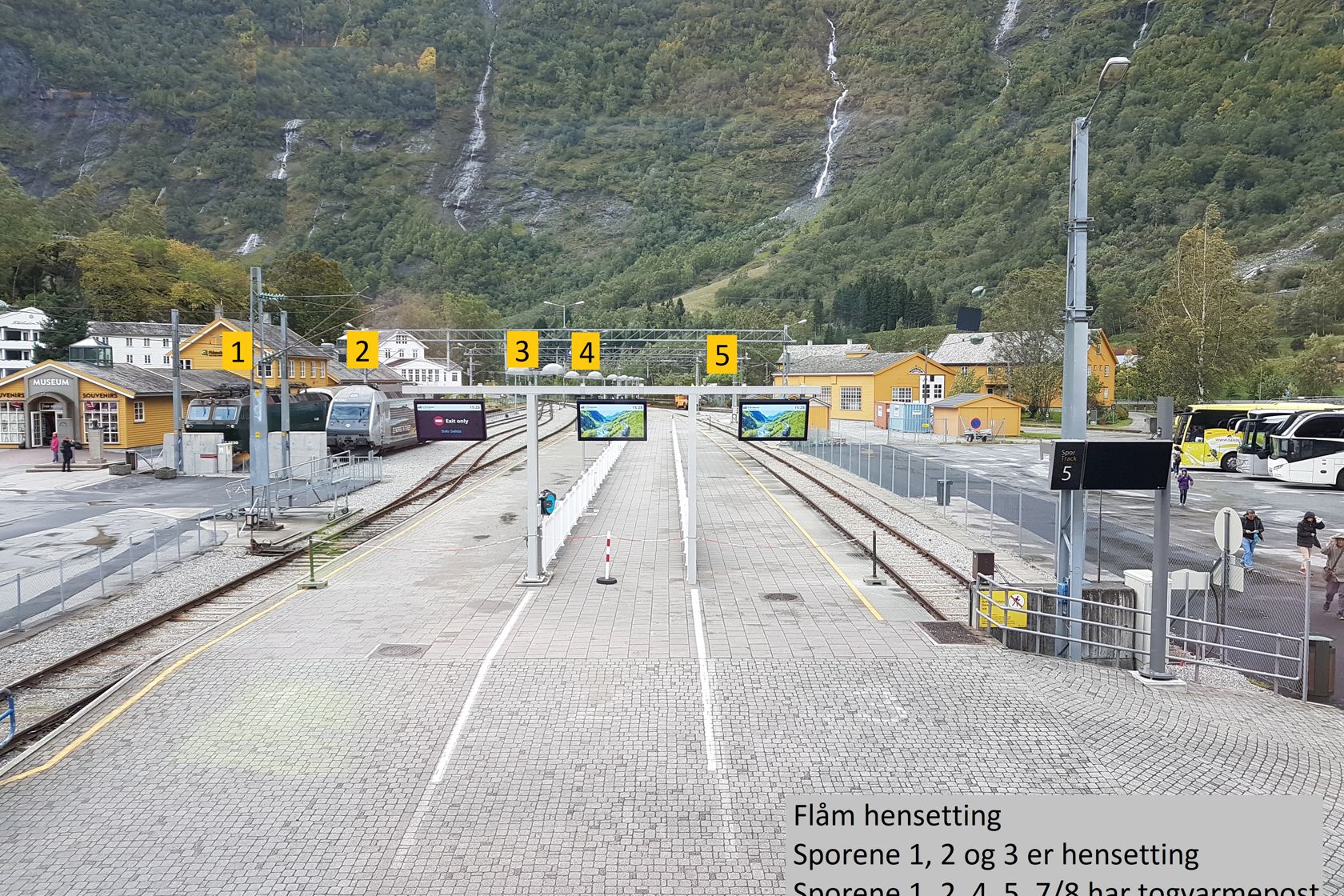

Flåm Stabling Facility Photo: Atle Einarson
On this page:
Facility Location
Section: Flåm–Myrdal, Flåmsbanen.
Distance from Oslo: 356,0 km.
Contact Information
Elise Sivertsen
Track Table
Track | Platform | Comments | ||||||
---|---|---|---|---|---|---|---|---|
No. | Type | Length (m) | Passing loop length (m) | Extended option (m) | Length (m) | Height (m) | Width (m) | |
1 | Togspor | 173 | 128 | |||||
2 | Buttspor | 137 | 84 | |||||
3 | Togspor | 135 | 36 | |||||
4 | Togspor | 254 | 227 | 150 | 570 | 5 | Mellomplattform | |
5 | Buttspor | 173 | 131 | |||||
5 | Buttspor | 240 | 198 | 150 | 570 | 5 | Mellomplattform |
Stabling Capacity
Track no. | Stabling length (m) | Number of stabling spots (110 m) | Catenary | Service platform | Track access with car | Toilet waste disposal | Water filling | Pre-heating installation | Washing facility | Notes on limitations and functions |
---|---|---|---|---|---|---|---|---|---|---|
1 | 168 | 1 | X | X | ||||||
2 | 126 | 1 | X | X | ||||||
3 | 90 | X |
Train Heating Installations
Installation | Location and Capacity | ||||||
---|---|---|---|---|---|---|---|
Installation no. | Capacity (kVA) | Stand no. | Local indentity no. | Serving track no. | Voltage (V) | Frequency (Hz) | Maximal continuous current (A) |
EL-TVA-000164 | 2500 |

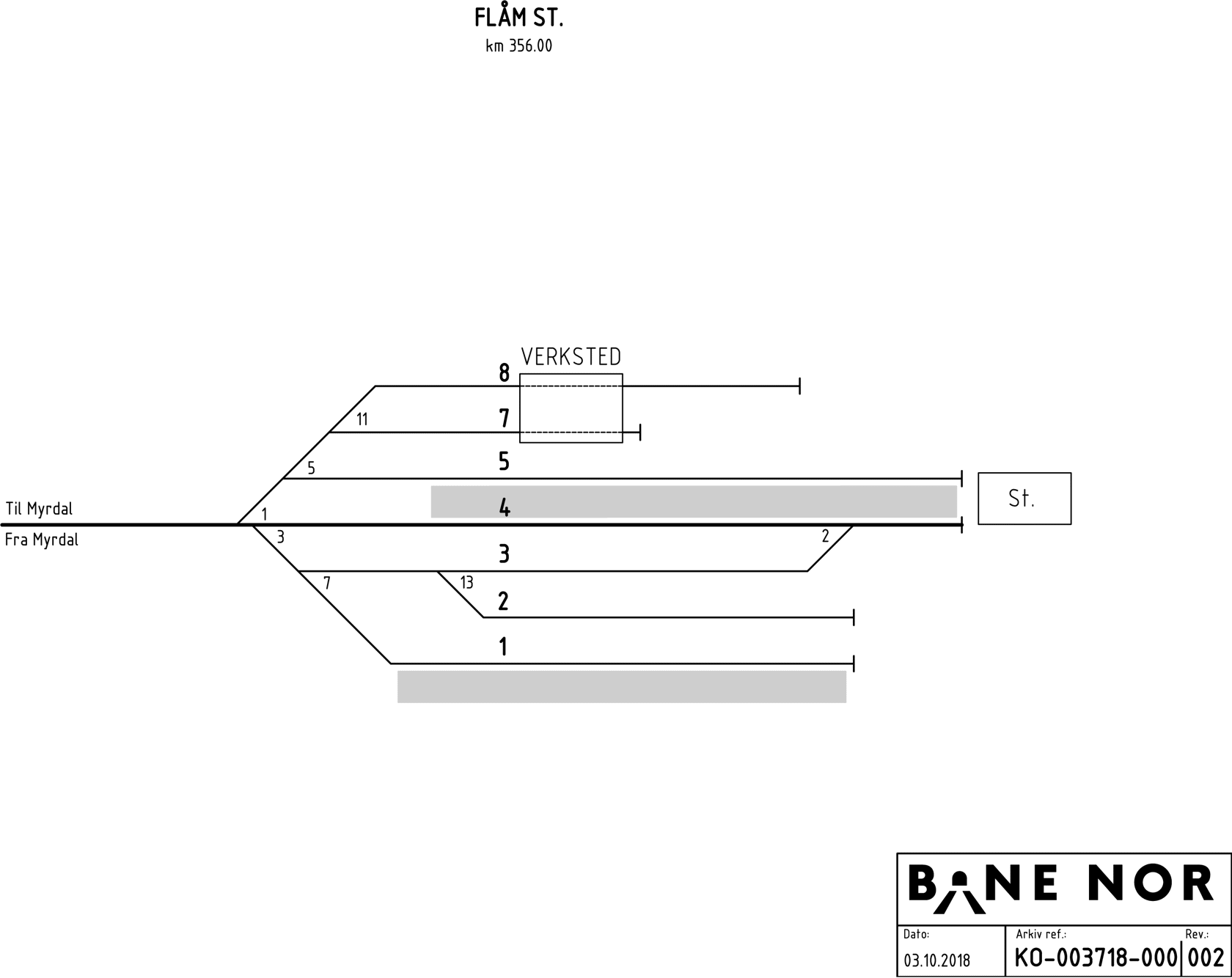

Track Plan
![Track plan Flåm Stabling Facility](/contentassets/026e1ad1bfcb438d9200e951574e2a51/flam-hensetting.png?width=1680&quality=80)
Track plan for Flåm Stabling Facility. Bane NOR
