Egersund Stabling Facility
![Photo of Egersund Stabling Facility](/contentassets/2304778880fa47699bff6ce1995016c6/egersund.jpg?width=1680&height=1120&quality=80)

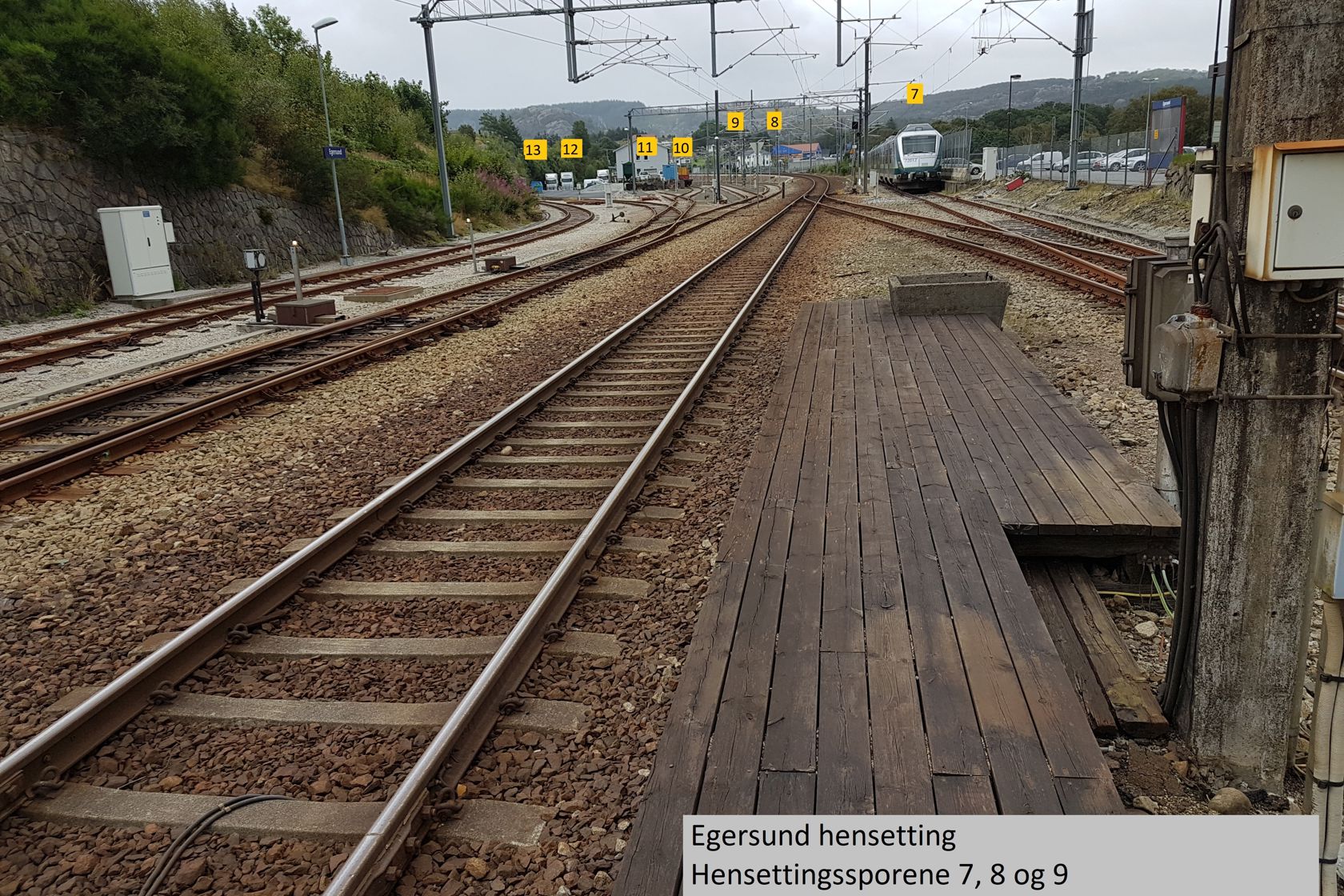

Egersund Stabling Facility Photo: Jernbanedirektoratet
On this page:
Facility Location
Section: Oslo S–Kristiansand–Stavanger S, Sørlandsbanen.
Distance from Oslo: 525,56 km.
Contact Information
Elise Sivertsen
Track Table
Track | Platform | Comments | ||||||
---|---|---|---|---|---|---|---|---|
No. | Type | Length (m) | Passing loop length (m) | Extended option (m) | Length (m) | Height (m) | Width (m) | |
1 | Togspor | 675,20 | 522 | 110 | 300 | 7 | Sideplattform | |
1 | Togspor | 675,20 | 522 | 130 | 300 | 5 | Sideplattform | |
1 | Hovedtogspor | 451,80 | ||||||
1 | Hovedtogspor | 347 | ||||||
2 | Hovedtogspor | 675,20 | 518 | 269 | 760/750 | 3660 | Mellomplattform | |
3 | Togspor | 252,50 | 195 | |||||
4 | Øvrige spor | 166 | 125 | |||||
5 | Øvrige spor | 199 | 126 | |||||
7 | Øvrige spor | 151 | 105 | |||||
8 | Øvrige spor | 476 | 340 | |||||
9 | Øvrige spor | 352 | 330 | |||||
10 | Øvrige spor | 166 | 116 | |||||
11 | Øvrige spor | 112 | 36 | |||||
12 | Øvrige spor | 114 | 120 | |||||
13 | Øvrige spor | 172 | 134 | |||||
14 | Øvrige spor | 34 | ||||||
15 | Øvrige spor | 201 | 130 | 165 | 300 | 3 | Sideplattform |
Stabling Capacity
Get in touch with the contact person for Egersund Stabling Facility.
Train Heating Installations
Installation | Location and Capacity | ||||||
---|---|---|---|---|---|---|---|
Installation no. | Capacity (kVA) | Stand no. | Local indentity no. | Serving track no. | Voltage (V) | Frequency (Hz) | Maximal continuous current (A) |
EL-TVA-000040 | 2500 |
Track Plan
![Track plan Egersund Stabling Facility](/contentassets/7c8dabc71c254db6ae89a02953cd1a9f/egersund-hensetting.png?width=1680&quality=80)

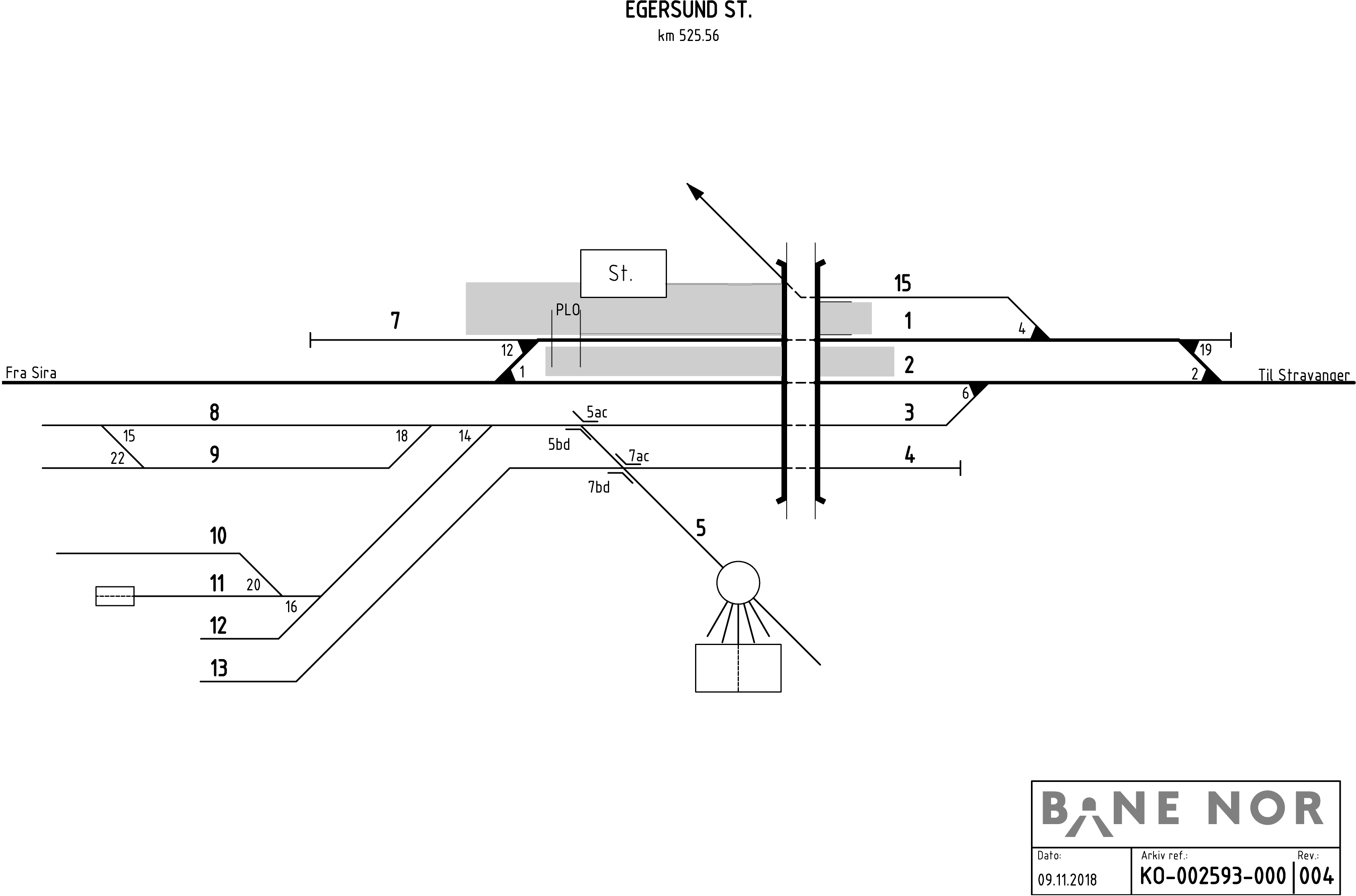

Track plan for Egersund Stabling Facility. Bane NOR
