Ål Stabling Facility
![Photo of Ål Stabling Facility](/contentassets/af6b91a7b6e0440ba9af03b112ab8284/al.jpg?width=1680&height=1120&quality=80)

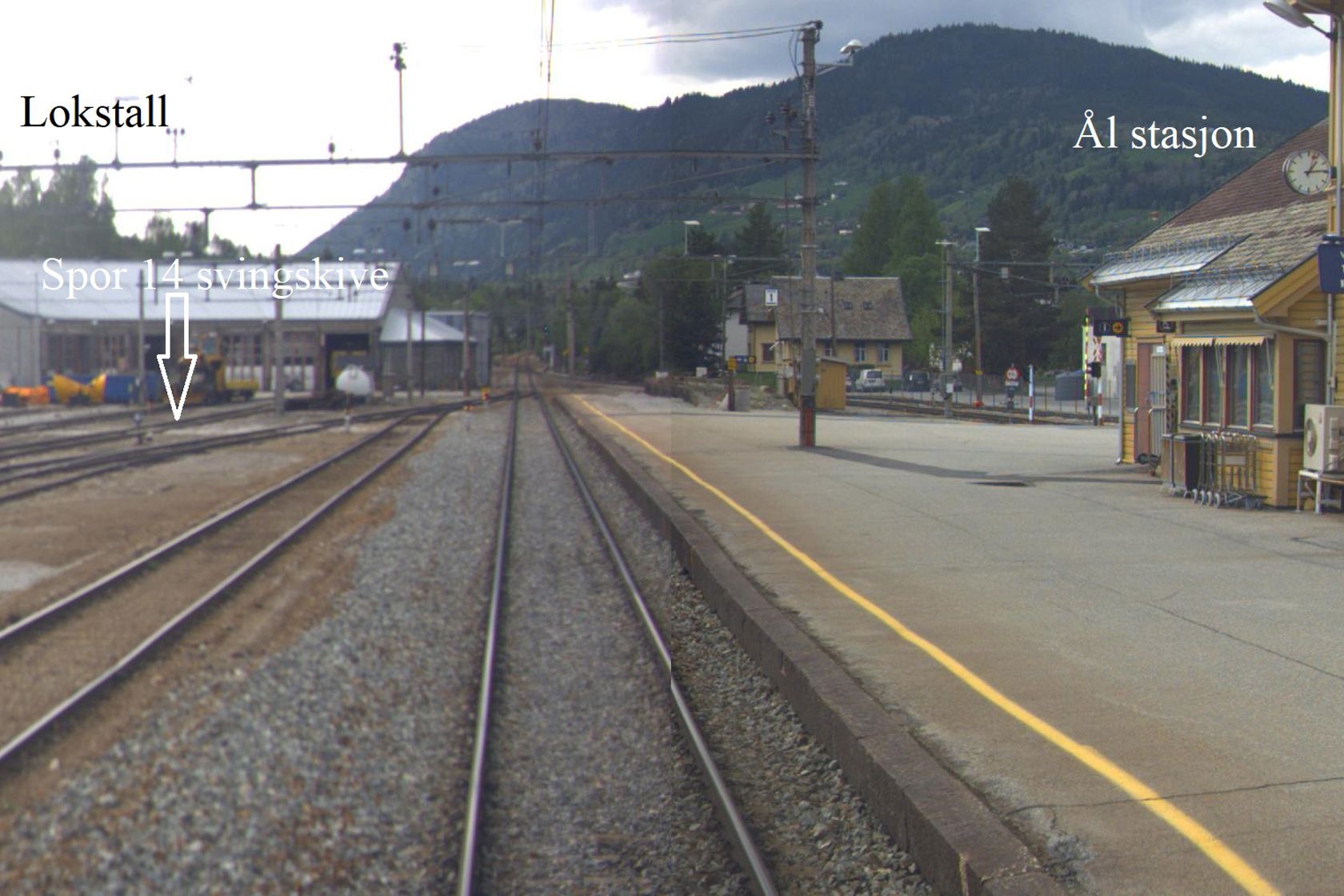

Ål Stabling Facility Photo: Bane NOR
On this page:
Facility Location
Section: Oslo–Roa–Bergen.
Distance from Oslo: 228,21 km.
Contact Information
Elise Sivertsen
Track Table
Track | Platform | Comments | ||||||
---|---|---|---|---|---|---|---|---|
No. | Type | Length (m) | Passing loop length (m) | Extended option (m) | Length (m) | Height (m) | Width (m) | |
1 | Hovedtogspor | 0 | 459 | 325 | 350/300 | 5 | Sideplattform | |
2 | Togspor | 382 | 601 | Ingen plattform | ||||
2 | Togspor | 32 | Ingen plattform | |||||
3 | Togspor | 316 | 409 | Ingen plattform | ||||
5 | Buttspor | 114 | Ingen plattform | |||||
6 | Buttspor | 158 | Ingen plattform | |||||
9 | Togspor | 331 | 469 | 273 | 350/300 | 5 |
Sideplattform Plattform |
|
10 | Buttspor | 256 | Ingen plattform | |||||
14 | Øvrige spor | |||||||
15 | Buttspor | 150 | Ingen plattform | |||||
16 | Buttspor | 150 | Ingen plattform | |||||
17 | Buttspor | 32 | Ingen plattform |
Stabling Capacity
Get in touch with the contact person for Ål Stabling Facility.
Train Heating Installations
Installation | Location and Capacity | ||||||
---|---|---|---|---|---|---|---|
Installation no. | Capacity (kVA) | Stand no. | Local indentity no. | Serving track no. | Voltage (V) | Frequency (Hz) | Maximal continuous current (A) |
EL-TVA-000138 | 2000 |

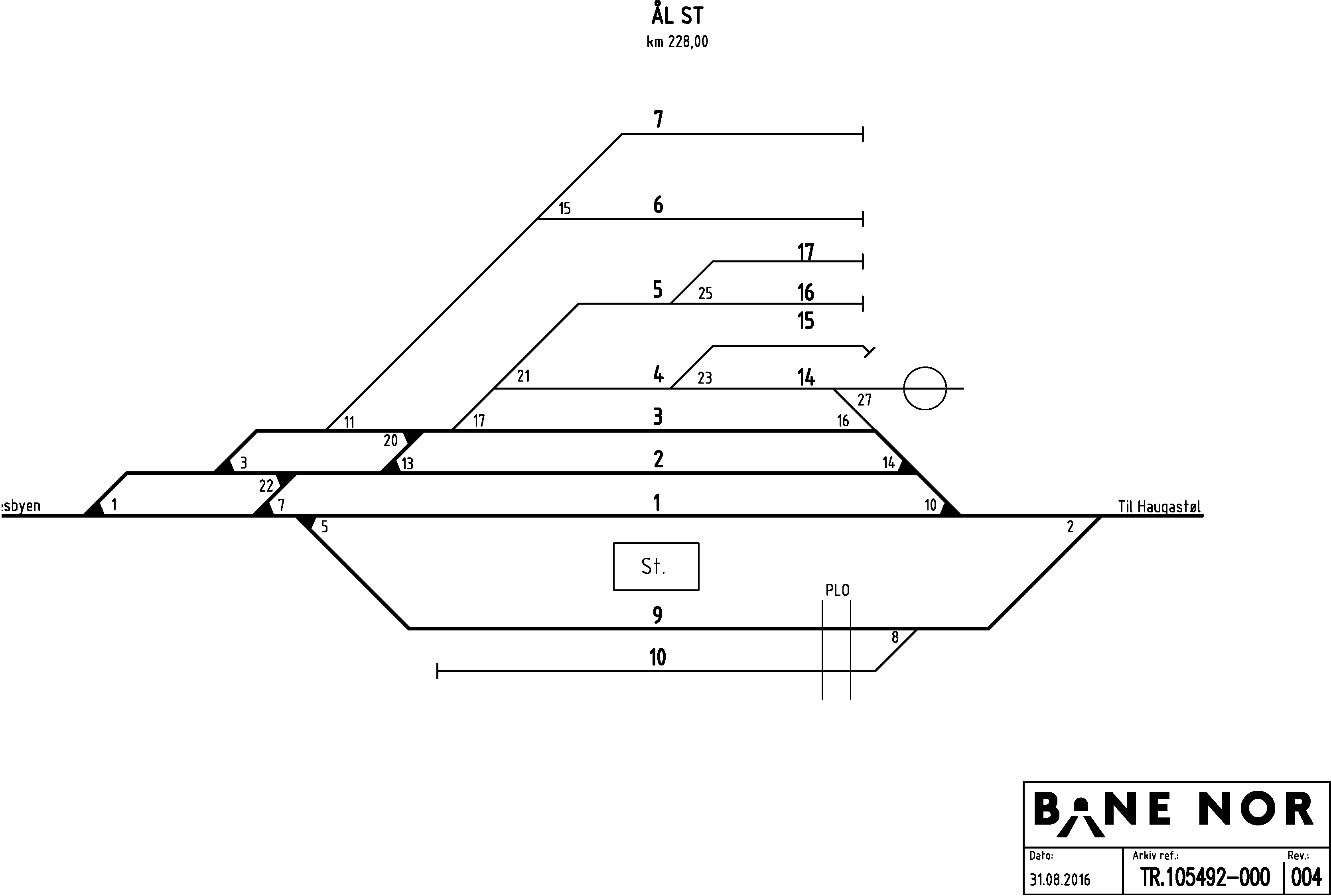

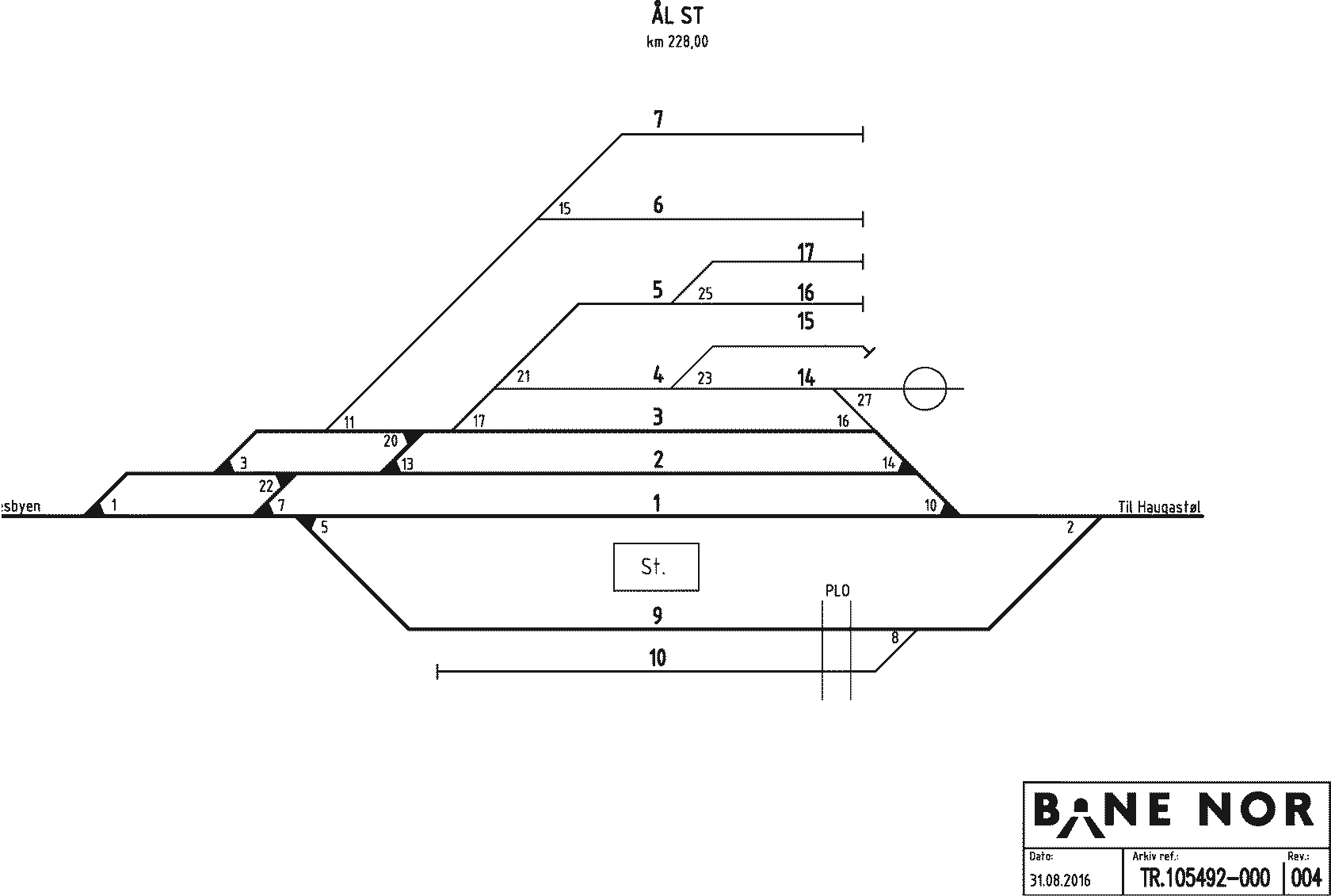

Track Plan
![Track plan Ål Stabling Facility](/contentassets/f8d6218223ec4f31b47bb9d24838f5fb/al-hensetting.png?width=1680&quality=80)
TRack plan for Ål Stabling Facility. Bane NOR
